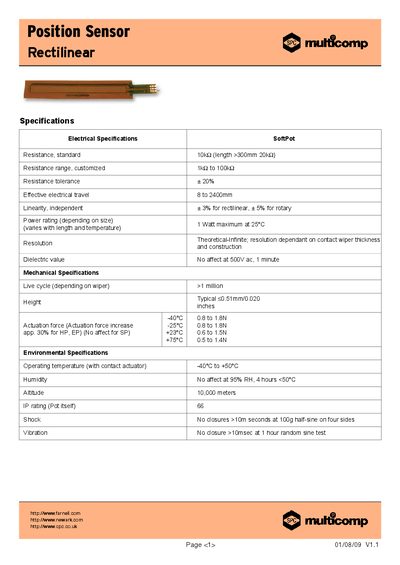

This document is a specification sheet for soft touch potentiometers, including electrical specifications, mechanical specifications, environmental specifications and connection options.
The Position Sensor Rectilinear from Multicomp is a SoftPot linear sensor offering customizable resistance values and high linearity for precise position measurement. It is supplied with optional solder‑tab connectors and can be tailored to specific application requirements.
The datasheet lists detailed electrical, mechanical and environmental specifications, including resistance ranges, power rating, travel limits, operating temperature, humidity tolerance, IP66 rating and durability tests, as well as part numbers for various sensor lengths.
| Standard resistance | 10 kΩ (20 kΩ for length >300 mm) |
|---|---|
| Custom resistance range | 1 kΩ to 100 kΩ |
| Resistance tolerance | +20 % |
| Effective electrical travel | 8 mm to 2400 mm |
| Linearity (rectilinear) | +3 % |
| Maximum power rating | 1 W at 25 °C |
| Live cycle (mechanical) | >1 million cycles |
| Operating temperature range | -40 °C to +50 °C |
| IP rating | IP66 |
The standard resistance is 10 kΩ, increasing to 20 kΩ for lengths over 300 mm.
The sensor can handle up to 1 Watt at 25 °C.
It operates from –40 °C up to +50 °C.
The sensor has an IP66 rating.
