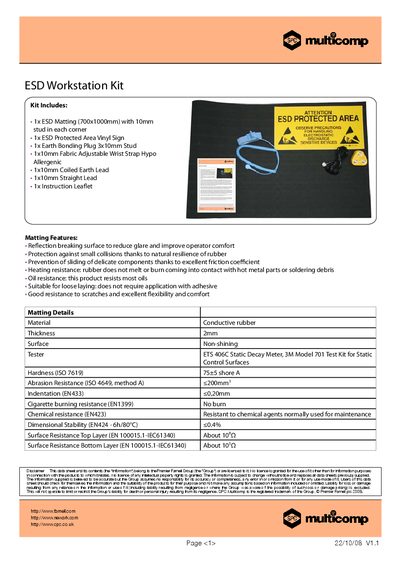

This is a data sheet, including the ESD workstation mat details, including materials, thickness, surface, etc
The ESD Workstation Kit from MULTICOMP provides a complete solution for creating an electrostatic discharge protected area. The kit includes a conductive rubber mat, signage, earth bonding plug, wrist strap, and leads, all designed to protect sensitive devices during handling and assembly.
The mat measures 700 × 1000 mm, is 2 mm thick, and features a non‑shining surface with a high friction coefficient to prevent sliding. It offers excellent chemical, oil, and heat resistance, and meets multiple EN standards for abrasion, indentation, and burn resistance. Additional components such as the earth bonding plug and wrist strap are engineered for reliable grounding and hypo‑allergenic use.
| Mat size | 700 × 1000 mm |
|---|---|
| Mat thickness | 2 mm |
| Material | Conductive rubber |
| Hardness (ISO 7619) | 75+5 Shore A |
| Cigarette burning resistance (EN1399) | No burn |
| Surface resistance top layer (EN 100015.1‑IEC61340) | ≈ 10⁸ Ω |
| Coiled Earth Lead resistivity | 1 MΩ ± 10 % |
| Straight Earth Lead resistivity | 1 MΩ ± 10 % |
The mat has a hardness of 75 + 5 Shore A according to ISO 7619.
The mat is rated as having no burn resistance to cigarettes (EN 1399).
The top layer has a surface resistance of about 10⁸ Ω.
