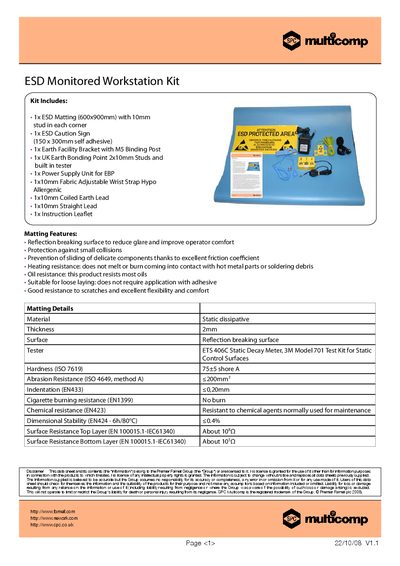

This is an ESD Monitored Workstation Kit produced by Farnell. The kit includes ESD Mat, Caution Sign, Earth Facility Bracket, UK Earth Bonding Point, Power Supply Unit for EBP, Adjustable Wrist Strap Hypo Allergenic, Coiled Earth Lead and Straight Lead.
The ESD Monitored Workstation Kit from Multicomp provides a complete anti‑static workstation solution. The kit includes a 600 × 900 mm ESD mat with a 10 mm stud in each corner, an ESD caution sign, earth bonding points with built‑in tester, a power supply unit, wrist‑strap set, earth leads, an earth‑facility bracket and an instruction leaflet.
The matting features a reflection‑breaking surface, high friction to prevent sliding, heat and oil resistance, and good scratch resistance. Detailed material properties such as static‑dissipative composition, hardness, surface resistance and dimensional stability are provided in the specifications section.
| Mat material | Static dissipative |
|---|---|
| Mat thickness | 2 mm |
| Hardness (ISO 7619) | 75+5 Shore A |
| Abrasion resistance (ISO 4649) | <200 mm? |
| Indentation (EN433) | <0.20 mm |
| Cigarette burning resistance (EN1399) | No burn |
| Chemical resistance (EN423) | Resistant to maintenance chemicals |
| Dimensional stability (EN424, 6 h/80 °C) | <0.4 % |
| Surface resistance – top layer | ≈ 10⁸ Ω |
| Surface resistance – bottom layer | ≈ 10¹⁰ Ω |
| Straight earth lead resistivity | 1 MΩ ± 10 % |
| Straight earth lead diameter | 2.4 mm |
| Straight earth lead length | 12 ft |
| Earth Facility Bracket size | 40 × 45 × 12 mm |
The straight earth lead has a resistivity of 1 MΩ ± 10 %.
