ASDA-A2 series servo driver is a high-precision open type servo driver. It uses precise feedback control and digital signal processor with high computing power to control IGBT to produce accurate current output to drive three-phase permanent magnet synchronous AC servo motor (PMSM) to achieve precise positioning.

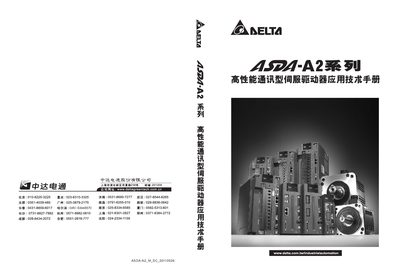

The manual covers safety precautions, product inspection, installation steps, wiring guidelines, panel display functions, and parameter settings for the ASDA‑A2 open‑type servo driver. It also includes maintenance procedures and troubleshooting tips to keep the system operating reliably.
Detailed sections describe how to connect power and signal cables, configure I/O, and perform regular inspections. The document emphasizes proper grounding, separation of power and signal wiring, and environmental requirements such as avoiding water, corrosive or flammable gases. This manual is written in Chinese.
| Power Rating (low range) | up to 400 W |
|---|---|
| Power Rating (high range) | 750 W to 4.5 kW |
| Driver Type | Open‑type servo driver |
Regular inspections should be performed to check mounting, wiring, and terminal conditions, as indicated in the periodic inspection checklist.
