This document introduces the user manual for Delta products, including installation precautions, wiring requirements, and environmental requirements. The product features dust-proof, moisture-proof, and electric shock/impact-free characteristics, suitable for installation in open-type enclosures. Moreover, the product supports multiple input sensors and control methods, with functions such as PID adjustment, manual control, and ON/OFF control.

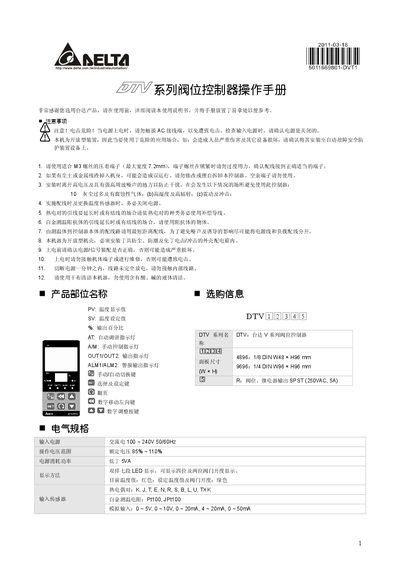

This manual provides safety instructions, installation steps, wiring diagrams and configuration procedures for the Delta DTV series valve position controller. It describes the controller's hardware layout, terminal assignments, power requirements and environmental limits.
The document also details control modes (PID, ON‑OFF), alarm output configuration, RS‑485 communication settings and programmable parameters, enabling users to set temperature setpoints, dead‑band, ramp and soak functions for precise process control. This manual is written in Japanese.
| Power supply voltage | AC 100‑240 V |
|---|---|
| Maximum output current | 5 A |
| Power consumption | 5 VA |
| Operating temperature range | -207 °C to +65 °C |
| Dimensions (DTV4896) | DIN W48 mm × H96 mm |
| Dimensions (DTV9696) | DIN W96 mm × H96 mm |
The controller operates from an AC power supply of 100‑240 V.
The controller can provide up to two external alarm outputs.
The output contacts are rated at 250 VAC, 5 A.
