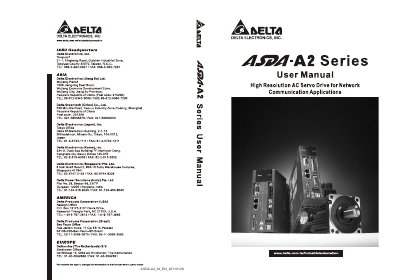

The Delta ASDA‑A2 User Manual covers all steps needed to safely install and commission the AC servo drive and its compatible ECMA servo motor. It includes detailed instructions on unpacking, wiring, parameter setting, communication protocols, and troubleshooting procedures.
Safety precautions are emphasized throughout, with guidance on proper grounding, avoiding explosive environments, and waiting periods before handling live equipment. The manual also describes routine maintenance, inspection, and component life expectations to ensure reliable long‑term operation.
| Maximum command input cable length | 3 m |
|---|---|
| Maximum encoder feedback cable length | 20 m |
| Ground resistance limit | 100 Ω |
| Typical life of smooth capacitor | 10 years |
Do not use the product in a potentially explosive environment, install it in a clean and dry location free from corrosive or flammable gases or liquids, ensure proper grounding, and never connect or disconnect power while the drive is energized.
The command input cable should not exceed 3 meters in length.
Wait at least 10 minutes after the AC power is removed before touching any terminals or performing inspection.
