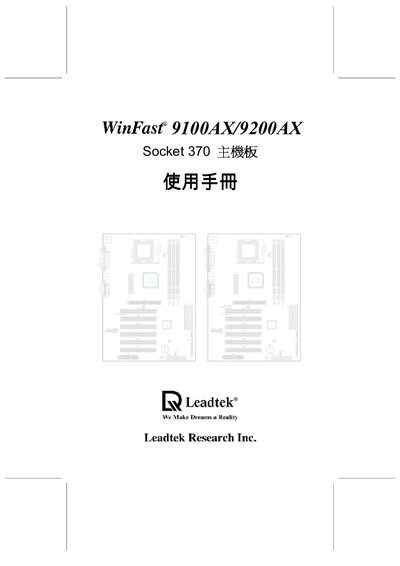

The WinFast 9100AX/9200AX is a Socket 370 ATX motherboard that uses Intel 81SE (9200AX) or 81SEP (9100AX) chipsets. It supports a range of CPUs, up to 512 MB of SDRAM, and provides integrated peripherals such as USB, Ethernet, and an AGP slot.
The manual details installation procedures, BIOS configuration, jumper settings, and troubleshooting steps. It also lists the connectors and ports available on the board, including USB headers, IDE interfaces, and network controllers, and provides warranty and support information. This manual is written in Chinese.
| CPU Support | Intel PGA370 Celeron, FC‑PGA Celeron, FC‑PGA Pentium II, PGA370 Cyrix |
|---|---|
| Chipset | Intel 81SE (9200AX) / Intel 81SEP (9100AX) |
| Maximum Memory Capacity | 512 MB |
| AGP Slot | 1 AGP slot (PCI‑X/AGP 2X/4X) |
| PCI Slots | 6 PCI slots |
| Board Dimensions | 220 mm × 305 mm (ATX) |
It supports Intel PGA370 Celeron, FC‑PGA Celeron, FC‑PGA Pentium II, and PGA370 Cyrix processors.
The board can accommodate up to 512 MB of memory using 32, 64, 128, or 236 MB DIMMs.
