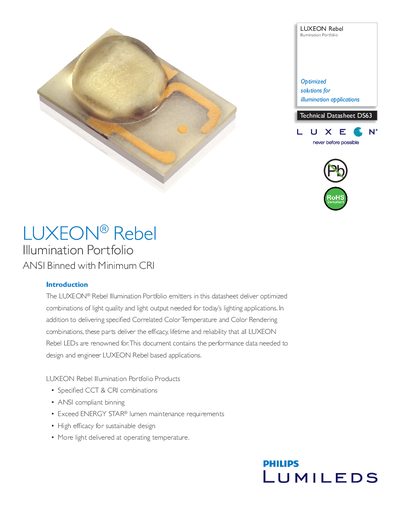

The LUXEON® Rebel Illumination Portfolio emitters in this datasheet deliver optimized combinations of light quality and light output needed for today’s lighting applications. In addition to delivering specified Correlated Color Temperature and Color Rendering combinations, these parts deliver the efficacy, lifetime and reliability that all LUXEON Rebel LEDs are renowned for.
The LUXEON Rebel illumination portfolio offers optimized combinations of color temperature and CRI, high efficacy and long lifetime for solid‑state lighting applications. The datasheet details the ANSI‑binned product families, environmental compliance with RoHS, and typical lumen maintenance of 70 % at 50 000 h.
Key specifications include forward voltage, maximum forward current, operating temperature ranges, and mechanical dimensions. Packaging options such as tape and reel are described, along with reflow soldering profiles and binning structures for product selection.
| Maximum DC Forward Current | 1000 mA |
|---|---|
| Peak Pulsed Forward Current | 1000 mA |
| Operating Case Temperature (350 mA) | -40 °C to 135 °C |
| Maximum LED Junction Temperature | 150 °C |
| Lumen Maintenance (L70) | 70 % at 50 000 h |
The LEDs are projected to maintain 70 % of their initial light output after 50 000 hours of operation at up to 700 mA.
The LED junction temperature is limited to a maximum of 150 °C.
