PHP/PHB/PHD71NQ03LT is a N-channel enhancement mode MOSFET product launched by Philips Semiconductors, using TrenchMOS™ technology, with logic level compatibility, low gate charge, large current, high power and other features, widely used in DC-DC converters, switch power supplies and other fields.

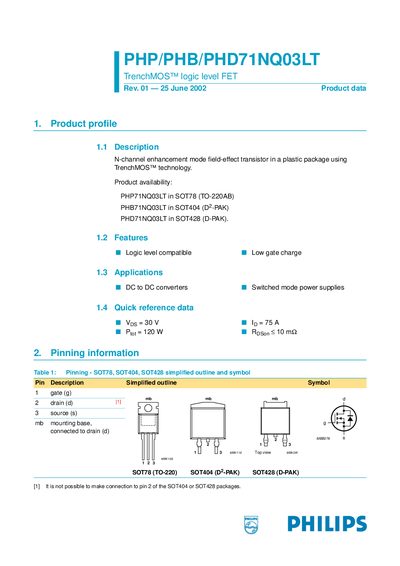

This datasheet provides the electrical characteristics, pin configuration, and thermal data for the Philips PHP/PHB/PHD71NQ03LT TrenchMOS logic‑level N‑channel field‑effect transistor. It includes absolute maximum ratings, typical performance curves, and package information for the SOT78, SOT404, and SOT428 variants.
The document also contains limiting values, thermal resistance values, and detailed specifications such as drain‑source voltage, drain current, on‑state resistance, and gate charge, useful for designers of DC‑DC converters and switched‑mode power supplies.
| Gate‑source charge (QGS) typical | 5.3 nC |
|---|
Typical gate‑source charge is 5.3 nC.
