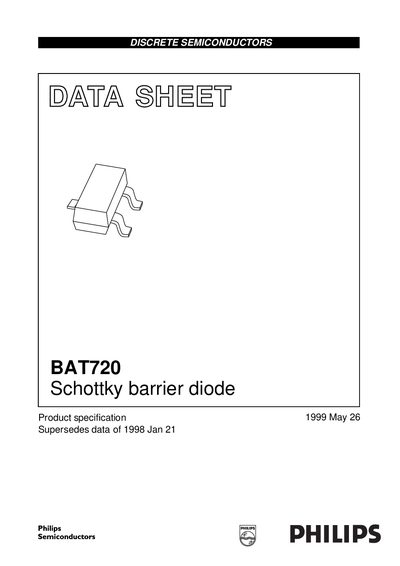

BAT720 is a Schottky diode produced by Philips Semiconductors. It features ultra high switching speed, low forward voltage, guard ring protected structure and small SOT23 plastic SMD package. It is suitable for ultra high speed switching, voltage clamping, protection circuits and other applications.
The BAT720 is a planar Schottky barrier diode featuring an integrated guard ring for stress protection and a low forward voltage in a compact SOT23 plastic surface‑mount package. It is designed for ultra‑high‑speed switching and voltage‑clamping applications.
The document provides electrical and thermal characteristics, limiting values, graphical performance curves, and package dimensions, along with standard safety and life‑support usage notices.
| Maximum reverse voltage (Ve) | 40 V |
|---|---|
| Maximum forward current (Ir) | 500 mA |
| Storage temperature range | -65 °C to +150 °C |
| Maximum junction temperature (Tj) | 125 °C |
The BAT720 can withstand a continuous reverse voltage of up to 40 V.
It is supplied in a plastic surface‑mounted SOT23 package with three leads.
