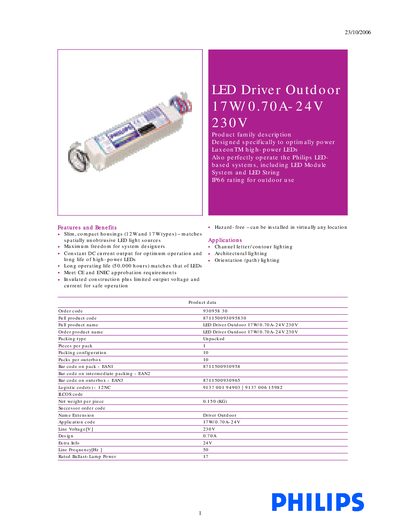

This document describes an outdoor LED driver that is designed for LuxeonTM high-power LEDs and Philips LED systems. It features a slim and compact housing, constant DC current output, and safe operation.
The Philips LED Driver Outdoor is designed to power high‑power Liuxeon™ LEDs and Philips LED‑based systems. It features a slim, compact housing, IP66 rating for outdoor use, and a constant DC current output for reliable operation.
The document provides detailed product data, electrical characteristics, temperature limits, mechanical dimensions, packaging information and compliance markings (CE, ENEC). It is intended for system designers and installers of channel‑letter, architectural, orientation and path lighting.
| Rated power | 17 W |
|---|---|
| Input voltage | 230 V AC |
| Output current | 0.70 A |
| Output voltage | 24 V DC |
| Line frequency | 50 Hz |
| Power factor (min) | 0.90 |
| Total Harmonic Distortion (max) | 20 % IEC |
| Maximum case temperature | 90 °C |
| Dimensions (L×W×H) | 132.0 × 34.2 × 25.0 mm |
| IP rating | IP66 |
The driver is rated for 17 W lamp power.
It operates from a 230 V AC line voltage.
Yes, it has an IP66 rating for outdoor installations.
The driver provides a constant 0.70 A DC output.
