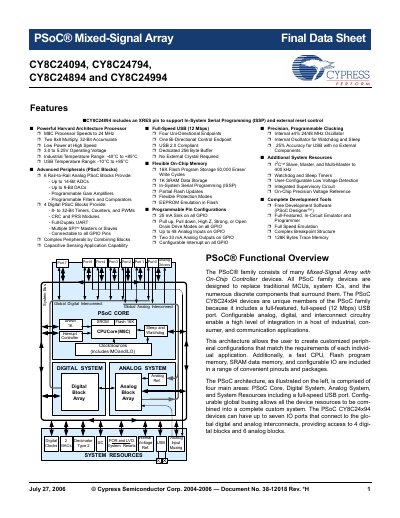

This document is the data sheet of CY8C24094, CY8C24794, CY8C24894 and CY8C24994. It introduces the features and characteristics of these devices, including configurable analog, digital, and interconnect circuitry, fast CPU, Flash program memory, SRAM data memory, and configurable IO.
The CY8C24x94 family is part of Cypress' PSoC® Mixed‑Signal Array line, offering a configurable analog, digital and interconnect architecture with an on‑chip Harvard‑architecture M8C CPU. Devices include a full‑speed USB 12 Mbps port, flexible I/O, and a range of pin‑out options for industrial, consumer and communication applications.
Key features include a 24 MHz M8C processor, 16 KB flash, 1 KB SRAM, up to 2 KB EEPROM emulation, 3.0‑5.25 V operation, 48 analog inputs, six analog blocks (up to 14‑bit ADCs, 9‑bit DACs) and four digital blocks (PWM, UART, SPI, I²C, CRC, etc.). The datasheet also describes development tools such as PSoC Designer and hardware resources like the in‑circuit emulator.
| CPU | M8C, up to 24 MHz |
|---|---|
| Flash Memory | 16 KB |
| SRAM | 1 KB |
| EEPROM Emulation | up to 2 KB |
| Operating Voltage | 3.0 V to 5.25 V |
| Industrial Temperature Range | -40 °C to +85 °C |
| USB Speed | Full‑Speed 12 Mbps |
| Analog Inputs | up to 48 |
| Digital Blocks | 4 |
| Analog Blocks | 6 |
The devices use an M8C processor that can run up to 24 MHz.
Each device provides 16 KB of flash program storage.
