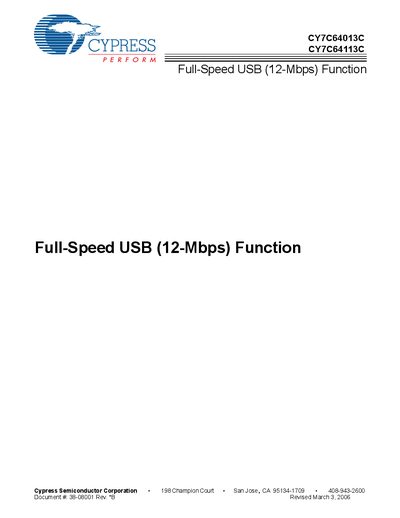

This is a datasheet for USB (12Mbps) function CY7C64013C CY7C64113C
The CY7C64013C and CY7C64113C are 8‑bit full‑speed USB microcontrollers offering 8 KB of PROM, 256 bytes of RAM, and integrated USB transceivers. They support an external 6‑MHz crystal, an internal PLL that generates 6, 12 and 48 MHz clocks, and include a 12‑bit free‑running timer, watchdog, and power‑on reset.
The devices provide multiple I/O options: three GPIO ports (Port 0‑2) with 7 mA typical sink current per pin, a fourth GPIO port (Port 3) with 12 mA sink capability, and a DAC port with programmable current‑sink outputs. Additional interfaces include an I²C‑compatible controller, a hardware‑assisted parallel interface (HAPI), and full USB‑1.1 compliance with up to five configurable endpoints.
| Operating voltage | 4.0 V to 5.5 V DC |
|---|---|
| Operating temperature | 0 °C to 70 °C |
| PROM size | 8 KB |
| RAM size | 256 bytes |
| External clock source | 6 MHz crystal |
| Internal CPU clock | 12 MHz |
| Timer resolution | 12‑bit free‑running timer |
| GPIO sink current (Port 3) | 12 mA typical per pin |
The devices operate from 4.0 V to 5.5 V DC.
Each part includes 256 bytes of RAM.
An external 6 MHz crystal and an internal PLL that provides 6, 12 and 48 MHz clocks.
The CY7C64113C version offers 32 GPIO pins.
