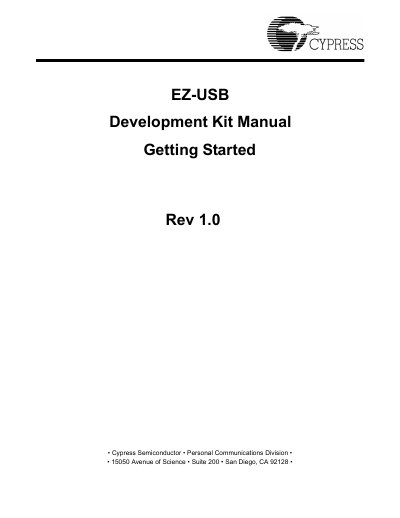

This document provides information about Cypress Semiconductor's EZ-USB Getting Started Development Kit, including product features and characteristics.
The EZ-USB Development Kit includes an EZ-USB Advanced Development Board, a prototyping breadboard, USB and RS‑232 cables, software on a CD‑ROM, and reference schematics. The board supports the EZ‑USB FX2LP and FX1 chips and offers six 20‑pin headers, EEPROM sockets, and I²C expanders for rapid USB design development.
The manual guides users through system requirements, software installation, hardware connection, driver binding, and verification using the Cypress USB Console. It also details the board’s schematic, jumper settings, and indicator functions, and provides troubleshooting FAQs for common setup issues.
| Operating Voltage | 3.3 V |
|---|---|
| Regulator Output | 3.3 V, 500 mA |
| On‑board RAM | 128 KB |
