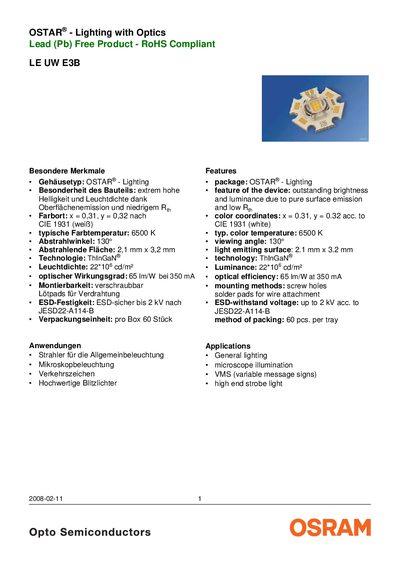

This product is an LED light source with outstanding brightness and luminance, color temperature of 6500K, viewing angle of 130°, light emitting surface of 2.1mmx3.2mm, ThInGaN® technology, Luminance of 22*106cd/m², optical efficiency of 65lm/W, rated current of 350mA, ESD-safe, mounting methods of screw holes solder pads for wire attachment, packaging method of 60 pcs. per tray.
The LE UW E3B is a high‑brightness LED with thin‑GaN technology, offering a typical color temperature of 6500 K and a viewing angle of 130°. It features a small light‑emitting surface of 2.1 mm × 3.2 mm and delivers a luminance of 22 × 10⁸ cd/m².
The component is rated for operation from –40 °C to +100 °C, with a maximum forward current of 1 A and an optical efficiency of 65 lm/W at 350 mA. It is supplied in screw‑mountable packages, 60 pieces per tray, and complies with RoHS directives. This manual is written in German.
| Color coordinates (x, y) | x = 0.31, y = 0.32 |
|---|---|
| Typical color temperature | 6500 K |
| Viewing angle | 130° |
| Light‑emitting surface | 2.1 mm × 3.2 mm |
| Luminance (typical) | 22 × 10⁸ cd/m² |
| Optical efficiency (typical) | 65 lm/W at 350 mA |
| Forward voltage (typical) | 20.8 V |
| Operating temperature range | -40 °C to +100 °C |
The typical viewing angle is 130°.
The LED is specified for a typical color temperature of 6500 K.
It provides an optical efficiency of 65 lm/W at a drive current of 350 mA.
The device can operate from –40 °C up to +100 °C.
