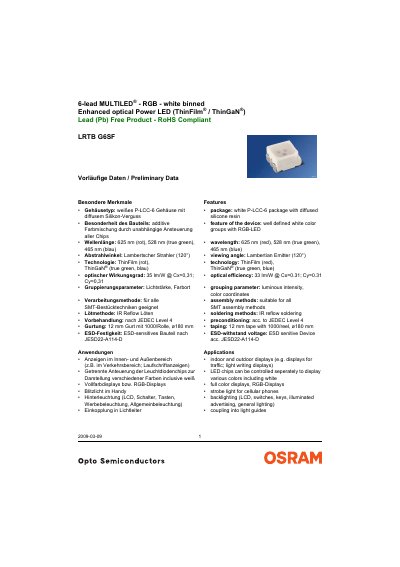

LRTB G6SF 6-lead MULTILED® - RGB - white binned Enhanced optical Power LED (ThinFilm® / ThinGaN®) Lead (Pb) Free Product - RoHS Compliant. The product uses a white P-LCC-6 package and uses 625 nm (red), 528 nm (true green) and 465 nm (blue) LEDs to form a 35 lm/W optical efficiency.
The OSRAM G5SF (LRTB G6SF) is a 6‑lead MULTILED® package offering independent control of red, true‑green and blue chips, plus a white bin. It is designed for indoor and outdoor displays, backlighting, strobe lights and other lighting applications.
The document provides detailed electrical characteristics, maximum ratings, colour‑coordinate groups, brightness groupings, packaging dimensions and handling instructions for moisture‑sensitive devices. This manual is written in German.
| Wavelength (red) | 625 nm |
|---|---|
| Viewing angle | 120° |
| Optical efficiency | 33 lm/W |
| Maximum forward current | 50 mA |
| Reverse voltage | 12 V |
| Operating temperature range | -40 °C to +100 °C |
| Maximum junction temperature | +125 °C |
The device can operate from –40 °C up to +100 °C.
