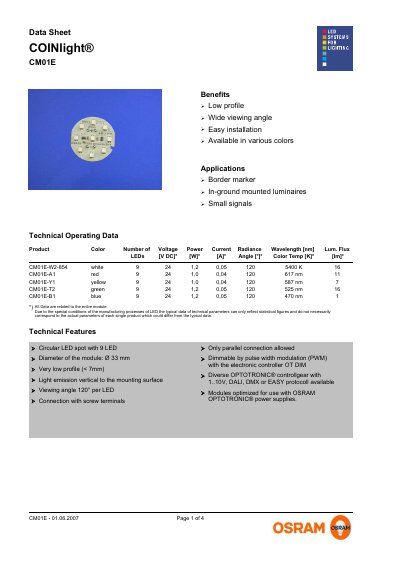

This datasheet provides the technical characteristics of CM01E COINlight®, including voltage, power, radiance angle, wavelength, color temperature, luminous flux, current, product number, LED quantity, etc.
The COINlight CM01E is a low‑profile circular LED module available in white, red, yellow, green and blue. It offers a wide viewing angle, easy installation and can be dimmed by PWM. The module is designed for use with OSRAM OPTOTRONIC® power supplies and supports 1‑10 V, DALI, DMX or EASY protocols.
The sheet lists technical operating data (voltage, power, current, radiance angle, color temperature and wavelength), minimum and maximum ratings, safety information, assembly instructions and an ordering guide. Qualified personnel should handle installation and ensure proper protection against short‑circuit, overload and overheat risks.
| Forward Voltage | 9 V |
|---|---|
| Power Consumption | 24 W |
| Current | 1.2 A |
Parallel connection is highly recommended; serial connection is not recommended.
The power supply must include short‑circuit, overload and overheat protection.
