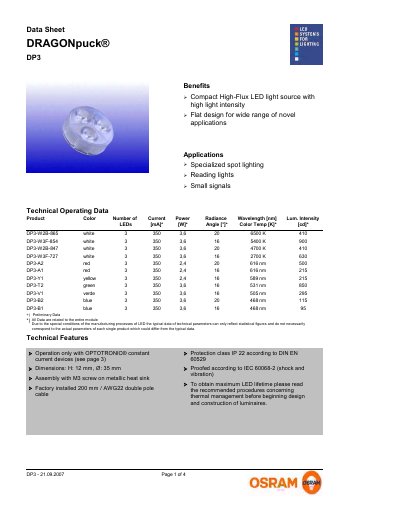

OSRAM DP3 DRAGONpuck Datasheet

About this manual

The DP3 DRAGONpuck is a compact high‑flux LED module designed for specialized spot lighting, reading lights, and small‑signal applications. It offers a flat ¾ design, operates only with OSRAM OPTOTRONIC® constant‑current drivers, and is supplied pre‑assembled with a 200 mm AWG22 double‑pole cable.

The document details technical features such as dimensions (12 mm × 35 mm Ø), IP22 protection, operating temperature ranges, maximum current ratings, recommended power supplies, safety precautions, and assembly instructions, including torque limits for mounting screws.

What's inside

• Benefits
• Applications
• Technical Features
• Technical Operating Data
• Maximum Ratings
• Safety Information
• Assembly Information
• Ordering Guide

Specifications

Frequently asked questions

Can DP3 modules be connected in parallel?

Parallel connection is not recommended for DP3 modules.

What is the maximum number of DP3 modules that can be used with an OT9 power supply?

With an OT9 driver you may connect up to 2 white/blue/green modules or up to 3 red/yellow modules.
