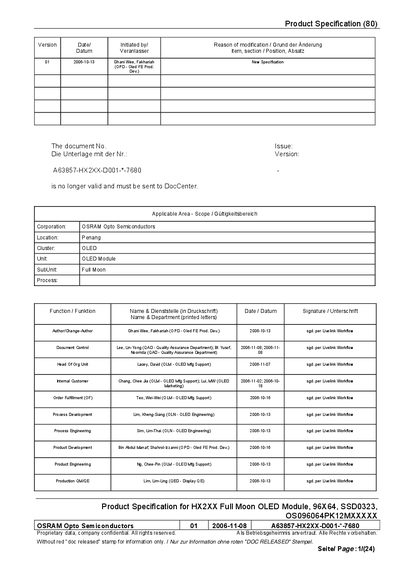

This document is about the product specification of the HX2XX Full Moon OLED module, which includes features such as 96X64 resolution, SSD0323 chip, and OS096064PK12MXXXXX model.
The OSRAM HX2XX Full Moon OLED Module is a 96 × 64 monochrome display using the SSD0323 driver IC. It features a 0.265 mm pixel pitch, an active area of 25.42 × 16.94 mm, and is available in several bezel and color options.
The document provides detailed electrical characteristics, pin‑out options for parallel and serial interfaces, mechanical handling guidelines, and environmental ratings. It also includes power‑up/down sequences, duty‑cycle settings, and ESD protection recommendations.
| Display format | 96 columns x 64 rows |
|---|---|
| Pixel pitch | 0.265 mm (W) x 0.265 mm (H) |
| Active area | 25.42 mm × 16.94 mm |
| Driver IC | SSD0323 |
| Typical logic supply voltage (VDD) | 3.0 V |
| Typical OLED driver supply voltage (VCC) | 12.5 V |
| Logic operating current (IDD) | 650 µA |
| Nominal duty cycle | 1/64 (default 1/80) |
| Maximum supply voltage (VDD) | -0.3 V to +4.0 V |
| Operating temperature range | -30 °C to +70 °C |
The default duty cycle is 1/80, although the nominal duty cycle is 1/64.
The recommended logic supply voltage (VDD) is typically 3.0 V, and the OLED driver supply voltage (VCC) is typically 12.5 V.
