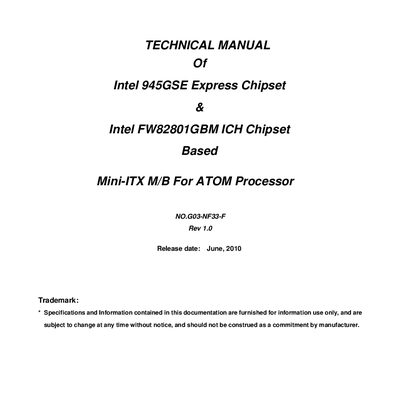

This file is the user manual of Intel 945GSE Express Chipset & Intel FW82801GBM ICH Chipset Based Mini-ITX M/B For ATOM Processor
The Intel 945GSE Mini‑ITX motherboard integrates the 945GSE+ICH7M chipset, an ATOM CPU, DDRII memory socket, Realtek RTL8111DL Gigabit LAN, and ALC662 audio codec. It supports 200‑pin DDRII SO‑DIMM up to 2 GB, CF and Mini‑PCIe expansion, USB 2.0, SATA II, and various headers for video, fan, and RS‑422/485.
The service manual provides hardware installation instructions, BIOS feature descriptions, password management, and procedures for loading standard or optimized defaults. Environmental safety guidelines and temperature limits (0‑60 °C) are also included.
| Chipset | Intel 945GSE+ICH7M |
|---|---|
| Embedded CPU | ATOM CPU |
| Memory socket | 200‑pin DDRII SO‑DIMM x1 |
| Supported memory | DDRII 400/533 MHz up to 2 GB |
| Maximum memory | 2 GB |
| LAN | Realtek RTL8111DL Gigabit Ethernet |
| Audio codec | ALC662 2‑channel HD Audio CODEC |
| USB ports | 4 × USB 2.0 ports + 1 × USB header |
| SATA | SATA II x1 |
| PCB size | 14.8 × 10.2 cm (3.5" SBC, 6 layers) |
Select the Load Standard Defaults option, press
The suitable temperature range is 0 °C to 60 °C.
It supports DDRII 400/533 MHz SO‑DIMM modules up to a maximum of 2 GB.
