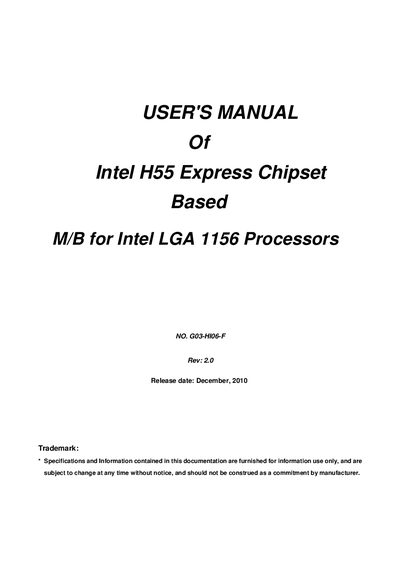

Intel H55 Express Chipset Based M/B for Intel LGA 1156 Processors USER'S MANUAL

This manual introduces the characteristics, specifications, installation and use methods of Intel H55 Express Chipset Motherboard.

Brand: Intel
Category: Motherboard
Document type: User Manual
Language: English
Pages: 52
File format: PDF
File size: 3.9 MB
Published: 06 April, 2012
Updated: 30 September, 2023
MD5 checksum: 5DCCA523418CF92CA33B08CDE1718481
PDF: Intel H55 Express Chipset Based M/B for Intel LGA 1156 Processors USER'S MANUAL PDF

About this manual

This manual covers the Intel H55 Express chipset motherboard, detailing safety instructions, hardware installation steps, BIOS configuration, and driver installation. It includes specifications such as SATA ports, LAN, audio, and expansion slots, as well as special features like CPU Smart Fan and G.P.I. power‑saving LEDs.

The document also provides troubleshooting guidance, environmental safety advice, and a checklist of items included with the motherboard. It is intended for end‑users and system builders who need to set up and maintain the board.

What's inside

Environmental Safety Instruction
User’s Notice
Item Check List
Cooling Solutions
Introduction of H55 Express Chipset Motherboards
Hardware Installation
BIOS Setup
Driver & Software Installation
G.P.I. Function LED Display

Specifications

SATA interfaces	Six SATA2 ports, 3.0 Gb/s each
LAN	Dual Gigabit LAN (10 M/100 M/1 Gbps)
Audio codec	Embedded 8‑channel HD CODEC
PCI‑Express slots	Two PCI‑Express 2.0 x16 slots (one x16, one x4)
USB ports	Up to 10 USB 2.0 ports (480 Mb/s)

Frequently asked questions

How many SATA ports are available on the motherboard?

The board provides six SATA2 ports, each capable of 3.0 Gb/s transfer rates.

Can the motherboard be used with dual graphics cards?

Yes, the two PCI‑Express 2.0 x16 slots support AMD CrossFireX technology for multi‑GPU setups.

Download PDF (3.9 MB)
