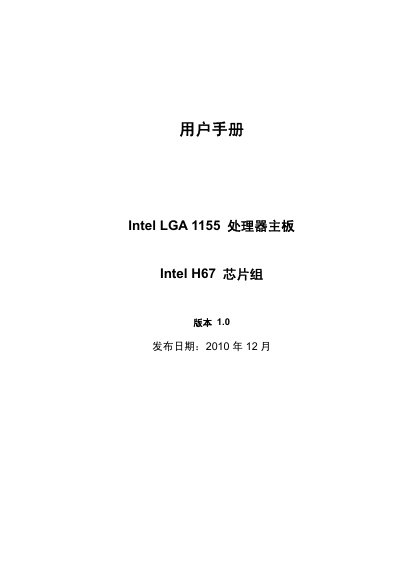

This document is the user manual of Intel LGA 1155 processor motherboard Intel H67 chipset, which provides detailed introduction on the use, installation, heat dissipation and precautions of the motherboard.
This manual covers the Intel H67 chipset motherboard designed for LGA 1155 processors. It includes an overview of board features, specifications, and layout diagrams.
Detailed hardware installation instructions are provided, covering CPU and cooler mounting, memory and expansion card installation, connector pinouts, and BIOS setup, along with environmental safety recommendations. This manual is written in Chinese.
| Form factor | U-ATX |
|---|---|
| PCB layers | 4-layer blue PCB |
| Dimensions | 23.0 cm x 24.5 cm |
| Chipset | Intel H67 |
| CPU socket | LGA1155 |
| Memory slots | 4 DDR3 slots |
| Maximum memory | 16 GB |
| PCI Express x16 slots | 1 x16 slot |
| SATA ports | 4 SATA2, 2 SATA3 |
| USB ports | 4 USB2.0 connectors, 6 USB2.0 headers, 1 USB3.0 connector |
| Network | Gigabit Ethernet |
| Audio codec | High‑fidelity 6‑channel 3D audio codec |
Power off the system, disconnect the ATX power, locate the JBAT pins and short pins 1‑2 for a few seconds, then restore the original connection and power on again.
The standard operating temperature range is 0 °C to 40 °C.
The board includes four USB 2.0 connectors, six USB 2.0 header pins, and one USB 3.0 connector.
An ATX 12V 8‑pin connector (ATX12V1) is required for the CPU power supply.
