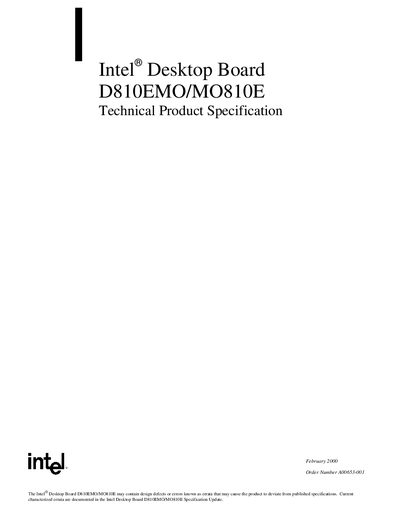

Intel D810EMO/MO810E Desktop Board Technical Product Specification

About this manual

This Technical Product Specification describes the layout, components, connectors, power and environmental requirements, and BIOS features of the Intel D810EMO/MO810E desktop board. It is intended for vendors, system integrators, engineers, and technicians who need in‑depth technical data.

The document includes a full hardware description, BIOS setup menus, error and beep code tables, mechanical and thermal considerations, and regulatory compliance information. It also notes the board’s FlexATX form factor and the Intel® 810E chipset used.

What's inside

• Product Description
• Hardware Layout and Block Diagram
• BIOS Features and Setup Program
• Error Messages and Beep Codes
• Mechanical and Thermal Considerations
• Electrical Considerations
• Regulatory Compliance

Specifications

Frequently asked questions

What is the BIOS identifier for the D810EMO/MO810E board?

The BIOS identifier is MO81010A.86A.

Where can I obtain the latest specification updates for the D810EMO/MO810E?

Contact your local Intel sales office or distributor; copies are available from Intel Corporation, P.O. Box 5937, Denver, CO.

What beep code indicates a video configuration failure?

One long tone followed by two short tones.

What form factor does the D810EMO/MO810E board use?

It uses the FlexATX form factor.
