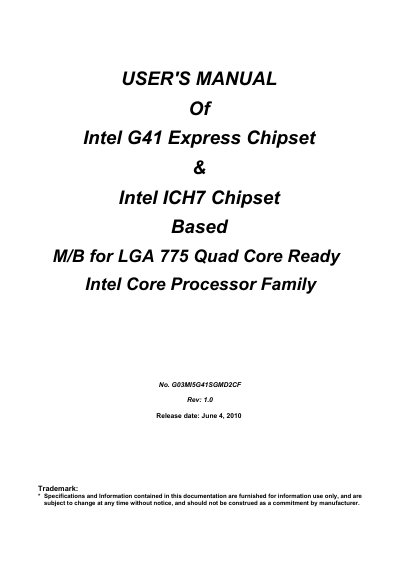

This document is the user manual of Intel G41 Express Chipset & Intel ICH7 Chipset Based M/B for LGA 775 Quad Core Ready Intel Core Processor Family
This manual provides detailed information for the Intel G41 Express Chipset and Intel ICH7 Chipset based motherboard designed for LGA 775 processors. It includes an introduction to the board’s features, hardware installation procedures, connector and jumper settings, and useful help topics such as BIOS updates and troubleshooting.
The document also lists technical specifications such as form factor, supported CPUs, memory types, expansion slots, and integrated peripherals. Safety instructions, environmental guidelines, and step‑by‑step instructions for clearing CMOS and updating the BIOS are included to assist both end users and service technicians. This manual is written in Chinese.
| Form factor | Micro ATX |
|---|---|
| CPU socket | LGA775 |
| SATA ports | 4 × Serial ATA2 (3 Gb/s) |
| LAN | Integrated PCI‑E 10/100 Mbps Ethernet |
| Audio codec | Realtek ALC662 6‑channel HD Audio |
| USB ports | 4 × USB 2.0 connectors |
The manual suggests keeping the CPU power below 65 W.
