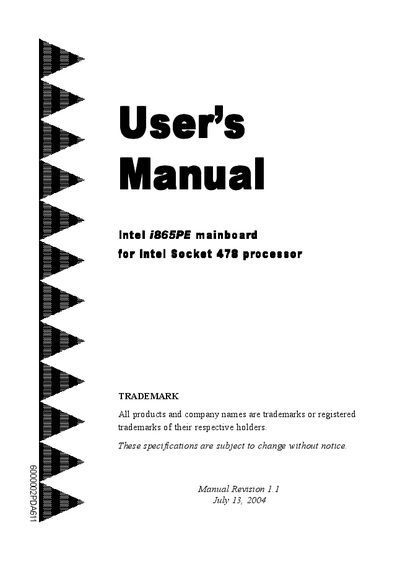

This is the user manual of Intel i865PE mainboard.
This manual introduces the Intel i865PE (Springdale‑PE) mainboard designed for Intel Socket 478 Pentium 4 processors. It lists the package contents, mainboard features such as AGP 3.0, Ultra ATA100, 10/100 LAN, Serial ATA, USB 2.0, and 6‑channel audio, and shows the system block diagram.
The document then guides users through installation, jumper settings, BIOS setup, and driver installation, and includes appendices for BIOS updates and EEPROM removal. It serves both end‑users assembling a PC and technicians performing maintenance.
| Chipset | Intel 865PE (Springdale‑PE) |
|---|---|
| Supported Processor | Intel Socket 478 Pentium 4 |
| IDE Interface | Ultra ATA100 Bus Master |
| LAN | 10/100 Ethernet |
| Audio Channels | 6‑channel |
| Memory Type | Dual DDR‑400 |
The board supports Intel Pentium 4 processors that use the Socket 478 package.
Refer to Appendix A titled “Update Your System BIOS” for the update procedure.
It uses Intel Dual DDR‑400 memory modules.
The board provides 6‑channel audio output.
