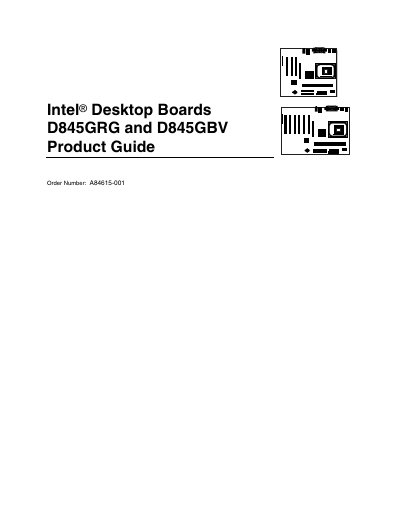

This guide covers the Intel D845GRG and D845GBV desktop boards, detailing their features, supported processors, memory options, chipset components, and peripheral interfaces. It includes installation and removal procedures, BIOS configuration, power‑management features, and safety and regulatory compliance requirements.
Key sections include a feature summary, detailed connector diagrams, step‑by‑step installation instructions, BIOS menu navigation, and a comprehensive list of compliance standards such as FCC Class B, CE, and UL. The document also provides memory specifications, USB and AGP capabilities, and optional LAN options.
| Form Factor (D845GRG) | microATX 9.6" x 8.2" |
|---|---|
| Form Factor (D845GBV) | ATX 12.0" x 8.2" |
| Maximum Memory | 2 GB DDR SDRAM (two 184‑pin DIMM sockets) |
| USB Ports | Up to six USB 2.0 ports (four rear, two front) |
| Optional LAN | Intel 82562ET 10/100 Mbit/sec |
The desktop boards support up to six USB 2.0 ports, with four on the back panel and two on the front panel header.
Both boards can accommodate up to 2 GB of DDR SDRAM using two 184‑pin DIMM sockets.
The D845GRG board uses a microATX form factor measuring 9.6 inches by 8.2 inches.
