This document describes the features and characteristics of Intel i965P mainboard and related processors.

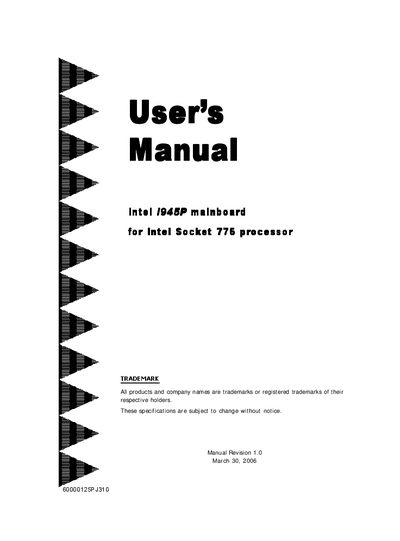

This manual introduces the Intel I945P motherboard, its package contents, and safety handling procedures. It warns about static electricity, recommends working on an antistatic surface, and keeping the power supply unplugged during installation.
The document covers CPU installation, jumper settings, memory configuration, rear I/O, internal connectors, BIOS setup (including Ghost BIOS recovery), driver utilities, and a post‑code appendix for troubleshooting. Detailed specifications for the chipset, memory, expansion slots, and other features are listed for reference.
| CPU Socket | LGA775 |
|---|---|
| Supported CPUs | Intel Celeron D, Pentium 4, Pentium D (dual‑core) |
| Front‑side Bus | 533/800/1066 MHz |
| Chipset | Intel i945P + ICH7 |
| Memory Slots | 4 DDR2 DIMM sockets |
| Maximum Memory | 4 GB |
| Supported Memory Types | DDR2‑400/533/667, 1.8 V |
| USB Ports | 8 USB 2.0 ports |
| LAN | 1 Gb Ethernet (Realtek RTL8110S) |
| SATA Ports | 4 SATA II ports (300 MB/s) |
| Audio | 2/6/8‑channel audio via ALC880 codec |
