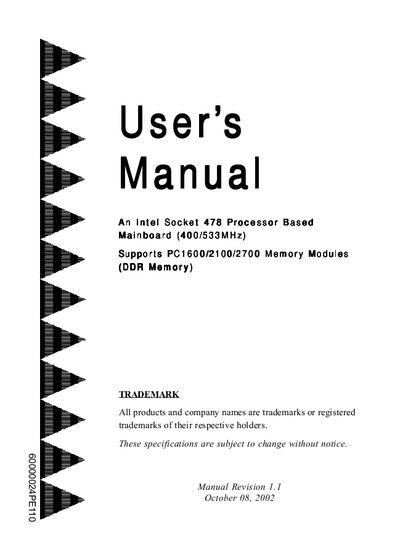

This is a manual for Intel Socket 478 processor-based mainboards (400/533MHz)
The manual introduces the Intel 845PE‑based mainboard, describing its chipset components (MCH, ICH4, FWH), supported processors, memory, graphics, and peripheral interfaces. It outlines the board’s features, system architecture, and the package contents included with the product.
Detailed sections cover step‑by‑step installation of the CPU, memory configuration, jumper settings, and connector usage, followed by BIOS configuration, driver installation, and several appendices with utility guides and recovery instructions.
| Chipset | Intel 845PE (MCH, ICH4, FWH) |
|---|---|
| Supported CPU | Intel Pentium 4 processors (Socket 478) |
| Memory | DDR SDRAM 200/266/333 MHz, up to 2 GB |
| AGP Interface | 4X 1.5 V AGP 2.0 |
| Storage Controllers | 2‑channel Ultra ATA/33/66/100 IDE, USB 2.0 |
The board uses the Intel 845PE chipset, which includes the Memory Controller Hub, I/O Controller Hub, and Firmware Hub.
It supports DDR SDRAM at 200, 266, or 333 MHz with a maximum capacity of 2 GB.
The mainboard provides a 4X 1.5 V AGP 2.0 interface, supporting only 1.5 V AGP cards.
