IKP06N60T is an IGBT product launched by Infineon. Its features are very low VCE(sat), maximum junction temperature 175 °C and short circuit withstand time-5µs. It is suitable for applications such as variable speed drive, air conditioner and induction cooking.
The IKPO6N60T is a 600 V, 6 A IGBT from Infineon's TrenchStop® series, designed for variable‑speed drives, UPS, and induction cooking applications. It features low loss, tight parameter distribution, and high ruggedness, with a very soft, fast‑recovery anti‑parallel EmCon HE diode.

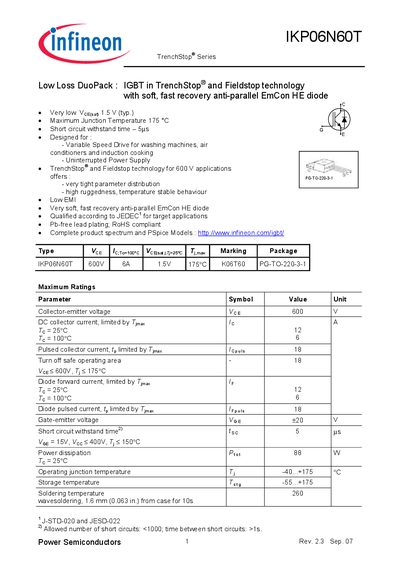

The document provides maximum ratings, thermal characteristics, static and dynamic electrical parameters, and detailed switching performance data, including typical output and transfer characteristics, gate charge, and short‑circuit withstand times.
| Collector‑emitter voltage (VCE) | 600 V |
|---|---|
| DC collector current (Ic) at 100 °C | 6 A |
| Power dissipation (P_R) | 88 W |
| Maximum junction temperature (Tj) | 175 °C |
| Gate‑emitter voltage (VGE) | +20 V |
The device is rated for a collector‑emitter voltage of 600 V.
The maximum power dissipation is 88 W.
The device can operate up to a junction temperature of 175 °C.
