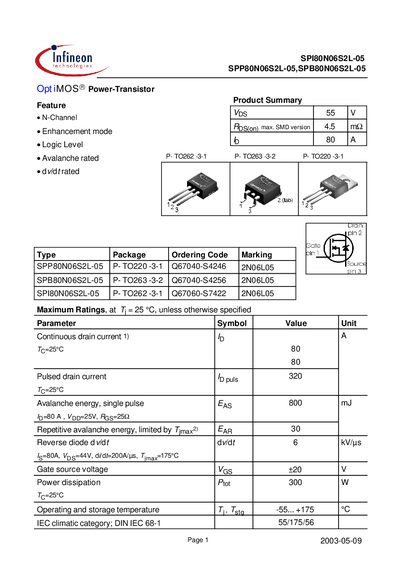

This document introduces the features and characteristics of SPI80N06S2L-05 SPP80N06S2L-05,SPB80N06S2L-05 OptiMOS Power-Transistor, including maximum current, on-resistance, pin package, model, maximum operating temperature, power consumption, voltage, and ambient temperature.
The SPI80NO6S2L-05, SPP80N06S2L-05 and SPB80N06S2L-05 are N‑channel optiMOS® power transistors offered by Infineon Technologies. They feature high current capability, low on‑resistance, and avalanche robustness for demanding power applications.
The document provides comprehensive specifications, including maximum ratings, thermal characteristics, dynamic switching parameters, and detailed electrical characteristics such as drain‑source breakdown voltage, capacitances, and gate charge. It also contains safe operating area graphs, typical output curves, and legal disclaimer information.
| Power dissipation | 300 W |
|---|
The devices can dissipate up to 300 W.
