PROFET® BTS 410 E2 is a high side power switch with overload protection, current limitation, short circuit protection, thermal shutdown, overvoltage protection (including load dump), fast demagnetization, reverse battery protection, undervoltage and overvoltage shutdown with auto-restart and hysteresis, open drain diagnostic output, open load detection in ON-state, CMOS compatible input, loss of ground and loss of Vbb protection, electrostatic discharge (ESD) protection.
The Infineon PROFET BTS 410 E2 is a smart high‑side power switch with integrated protection functions such as overload, short‑circuit, thermal shutdown, over‑voltage, load‑dump, reverse‑battery and ESD protection. It is designed for 12 V and 24 V DC grounded loads and can replace electromechanical relays, fuses and discrete circuits.

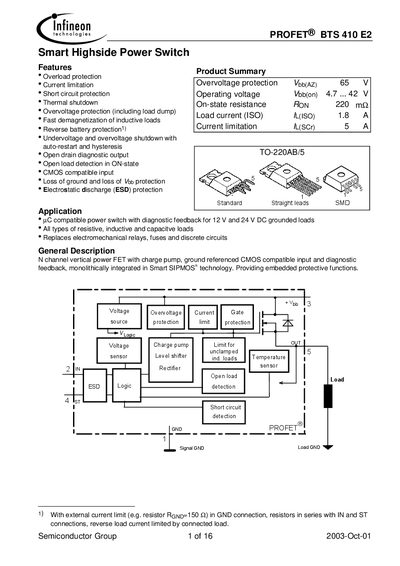

The document provides pin definitions, maximum ratings, electrical and thermal characteristics, protection functions, input/status feedback details, and package information for the TO‑220AB/5 package. It also includes application notes for inductive load switching and safety warnings.
| Overvoltage protection (Vob) | 65 V |
|---|---|
| Operating voltage (Vbb(on)) | 4.7 … 42 V |
| On‑state resistance (RON) | 220 mΩ |
| Load current (ISO) | 18 A |
| Current limitation | 5 A |
| Package | TO‑220AB/5 |
The device operates from 4.7 V up to 42 V.
The typical on‑state resistance is 220 mΩ.
