IPS50R520CP is a CoolMOSTM power transistor that features the lowest RONxQg, ultra-low gate charge, extreme dv/dt rating, high peak current capability, lead-free lead plating, and RoHS compliance.
The IPS50R520CP is a CoolMOS™ power transistor designed for high‑performance applications such as hard and soft‑switching SMPS, DCM PFC, and lamp ballast PWM stages. It features ultra‑low gate charge, low on‑state resistance, and high peak current capability while complying with RoHS and JEDEC standards.

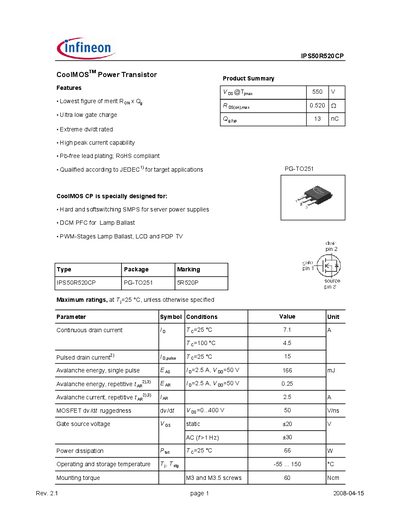

The document lists detailed electrical, thermal, and dynamic characteristics, including maximum ratings, typical output curves, capacitance values, and package dimensions for the I‑PAK Short Leads (PG‑T0251‑3‑1‑21‑41) form factor.
| Continuous drain current (Id) | 71 A @ 25 °C |
|---|---|
| Power dissipation (Pd) | 66 W @ 25 °C |
| Total gate charge (Qg) | 13 nC |
| Package dimensions (A) | 2.18 mm × 2.38 mm |
The device can handle a continuous drain current of 71 A at 25 °C.
It is rated for a power dissipation of 66 W at 25 °C.
It is supplied in an I‑PAK Short Leads package (PG‑T0251‑3‑1‑21‑41).
