This document provides detailed information about the BTS711L1 product, including its features and characteristics, such as overload protection, current limiting, short circuit protection, thermal shutdown, overvoltage protection, fast demagnetization of inductive loads, reverse battery protection, undervoltage and overvoltage shutdown, open drain diagnostic output, open load detection, CMOS compatible input, loss of ground and loss of Vbb protection, electrostatic discharge (ESD) protection
The BTS711L1 is a smart four‑channel high‑side power switch designed for automotive and industrial applications. It integrates over‑voltage, undervoltage, short‑circuit, reverse‑battery, and ESD protection, and provides diagnostic feedback for each channel.

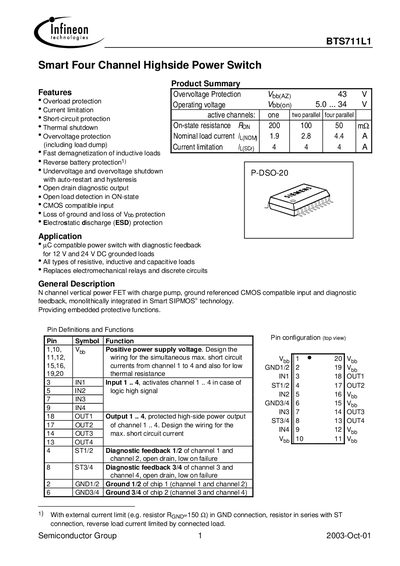

The document provides a product summary, pin definitions, maximum ratings, electrical characteristics, diagnostic parameters, truth tables, and package information. It also lists ordering codes and legal notices from Infineon Technologies AG.
| Supply voltage for full short‑circuit protection (Vb) | 34 V |
|---|---|
| On‑state resistance (Ron, typical) | 200 mΩ |
The device can tolerate a supply voltage up to 34 V for full short‑circuit protection.
The typical on‑state resistance is about 200 mΩ per channel.
