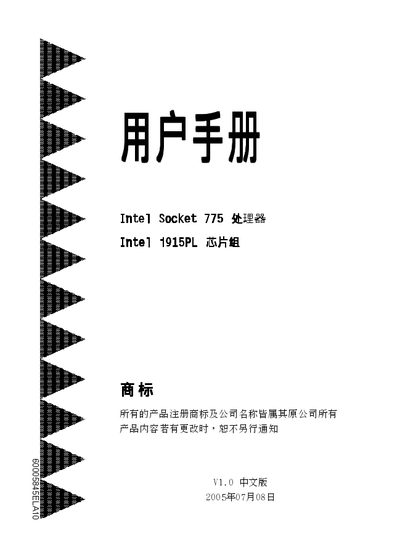

This is a motherboard manual that introduces the motherboard's specifications, installation, BIOS settings and driver installation, etc.
The manual begins with a list of package contents, including the motherboard, USB2.0 connectors, SATA cables and other accessories. It then details the technical specifications such as supported CPUs, memory types, expansion slots, and integrated controllers.
Subsequent chapters cover step‑by‑step installation, BIOS update procedures using the Award Flash utility, and common troubleshooting steps for memory, video, and peripheral issues. Appendices provide BIOS flash files and error‑message explanations. This manual is written in Chinese.
| Supported Memory | DDR‑333/400, up to 2 GB, dual‑channel |
|---|---|
| Maximum Memory Capacity | 2 GB |
| Audio Codec | Realtek ALC655 AC'97, 6‑channel |
| USB Ports | 8 USB2.0 ports (4 on rear panel) |
| PCI Express Slots | PCI‑Express x16, PCI x1 |
Clear the CMOS by using the jumper or the Insert utility as described in the troubleshooting section.
