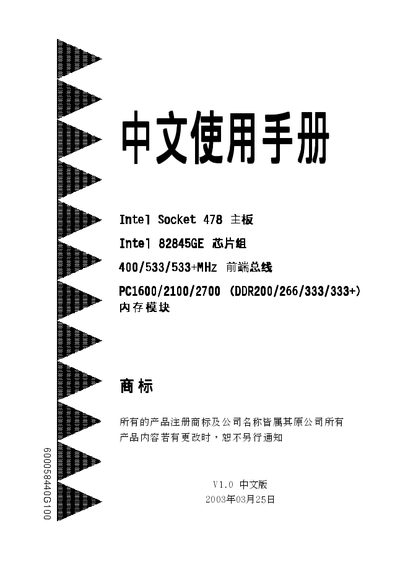

This is a manual for Intel Socket 478 motherboard
The document introduces the Intel Socket 478 motherboard, covering packaging contents, board dimensions, connector layout, and system overview. It includes chapters on specifications, installation procedures, BIOS setup, and program installation.
Key features include support for Pentium 4 processors (478‑pin), DDR memory modules (PC1600/2100/2700), ATX form factor, multiple expansion slots (PCI, AGP, USB 2.0), and power requirements with 20‑pin ATX and 4‑pin ATX12V connectors. This manual is written in Chinese.
| Socket Type | Socket 478 |
|---|---|
| Chipset | Intel 82845GE |
| Front Side Bus | 400/533/533+ MHz |
| Supported Memory | PC1600/2100/2700 DDR200/266/333/333+ |
| USB Ports | USB 2.0 |
| Expansion Slots | PCI, AGP, Serial, LPC |
It supports Pentium 4 processors with a 478‑pin package.
The board accepts PC1600, PC2100, and PC2700 DDR memory modules (DDR200/266/333/333+).
A power supply of at least 250 W is required, with 300 W recommended.
The motherboard includes USB 2.0 ports.
