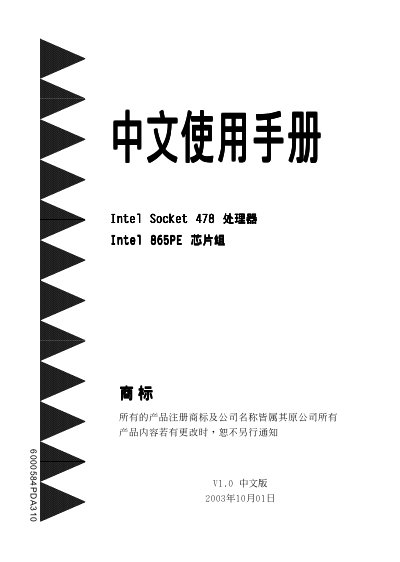

This document is about the V1.0 Chinese version. The document provides information about Intel Socket 478 processors and Intel 865PE chipsets. Additionally, the document includes a list of common debugging card codes and their solutions. The document also provides information about motherboard dimensions, input/output ports, power switches, etc.
This manual provides detailed information for Intel Socket 478 motherboards, including BIOS configuration, hardware layout, and system functions. It is intended for end‑users and system builders who need to set up or troubleshoot the board.
The document covers CPU support, memory options, chipset features, power‑supply requirements, I/O connectors, and procedures for updating the VGA BIOS and adjusting CMOS settings. All specifications are presented in Chinese with reference tables and diagrams. This manual is written in Chinese.
| Supported CPU Front‑Side Bus | FSB400, FSB533, FSB800 |
|---|---|
| Chipset | Intel 865PE (865PE + ICH5/R) |
| Supported DDR Memory Types | DDR266, DDR333, DDR400 |
| Power Supply Rating | 4 ±ø184 °w PC2100/PC2700/PC3200 (DDR266/333/400) |
It uses the Intel 865PE chipset with an integrated ICH5/R controller.
The VGA BIOS update procedure is described in the "VGA BIOS" section of the manual.
