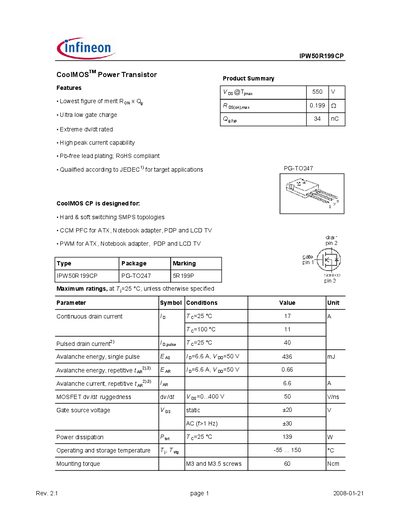

IPW50R199CP CoolMOSTM power transistor features the lowest figure of merit RON x Qg, ultra low gate charge, extreme dv/dt rated, high peak current capability, Pb-free lead plating; RoHS compliant and qualified according to JEDEC for target applications.
The IPW50R199CP is a CoolMOS power transistor designed for hard and soft switching SMPS topologies, such as ATX power supplies, notebook adapters, and LCD TV inverters. It offers ultra‑low gate charge, high peak current capability, and is RoHS compliant.
Key specifications include a continuous drain current of 17 A, pulsed drain current of 40 A, power dissipation up to 139 W, and a typical on‑state resistance of 0.18 Ω. The device features a gate threshold voltage around 2.5 V, input capacitance of 1800 pF, and avalanche energy of 436 mJ.
| Power dissipation (Pd) | 139 W |
|---|
It can dissipate up to 139 W at a case temperature of 25 °C.
