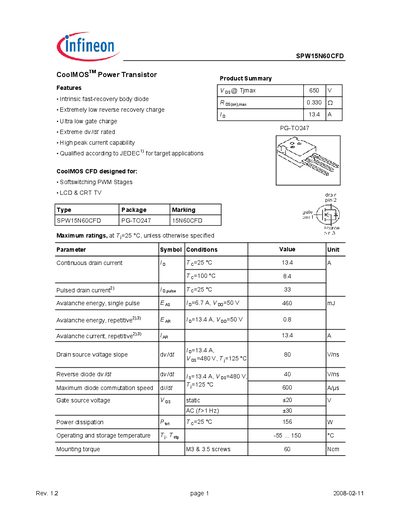

The SPW15N60CFD CoolMOSTM power transistor features intrinsic fast-recovery body diode, extremely low reverse recovery charge, ultra-low gate charge, extreme dv/dt rating, high peak current capability, etc. It is designed for soft-switching PWM stages, LCD and CRT TVs.
The SPW15N60CFD is a CoolMOS™ power transistor designed for soft‑switching PWM stages and TV drain applications. It features an intrinsic fast‑recovery body diode, ultra‑low gate charge, and high peak current capability, qualified according to JEDEC standards.
The datasheet lists electrical, thermal, and dynamic parameters such as a continuous drain current of 13.4 A, a drain‑source voltage rating of 600 V, total gate charge of 63 nC, and a power dissipation capability of 156 W at 25 °C. Mechanical dimensions and packaging details for the PG‑TO‑247 case are also provided.
| Continuous drain current (Id) | 13.4 A |
|---|---|
| Total gate charge (Qg) | 63 nC |
| Input capacitance (Ciss) | 1820 pF |
| Reverse recovery time (trr) | 147 ns |
| Power dissipation (Pd) | 156 W |
| Operating temperature range | -55 °C to 150 °C |
The maximum continuous drain current is 13.4 A at 25 °C.
The total gate charge is 63 nC (measured from 0 to 10 V).
The reverse recovery time is 147 ns.
