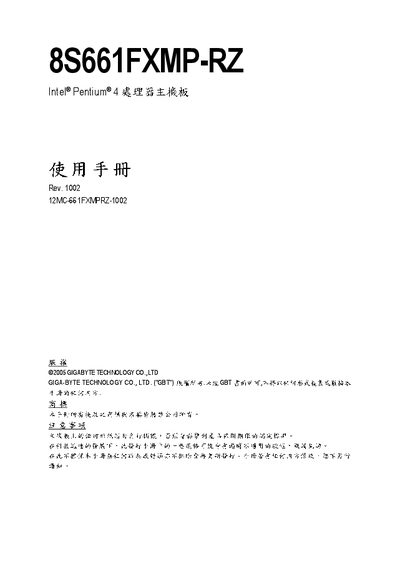

Gigabyte 8S661FXMP-RZ Motherboard User Manual

The specifications of the 8S661FXMP-RZ motherboard, including the processor, memory, hard disk, graphics card, network card, sound card and other information

Brand: Gigabyte
Category: Motherboard
Document type: User Manual
Language: Chinese
Pages: 40
File format: PDF
File size: 5.1 MB
Published: 06 April, 2012
Updated: 30 September, 2023
Model: 8S661FXMP-RZ
MD5 checksum: 97750EFFB5981493CAEEE675C79EAD97
PDF: Gigabyte 8S661FXMP-RZ Motherboard User Manual PDF

About this manual

This manual covers the installation steps for the Gigabyte 8S661FXMP‑RZ motherboard, including CPU, heatsink, memory, graphics, and peripheral connections. It also explains BIOS configuration, driver installation, and RAID setup.

Additional sections provide product specifications, safety and compliance information, and worldwide technical support contacts for Gigabyte. This manual is written in Chinese.

What's inside

Safety Declaration
Installation Guide
BIOS Settings
Driver Installation
Product Specifications
SATA RAID Features
Technical Support Contacts

Specifications

Chipset (Northbridge)	SiS 661FX
Maximum memory	2 GB
Audio codec	Realtek ALC655 CODEC
Network port	1 RJ45 Ethernet port

Frequently asked questions

How much maximum memory can be installed?

The board supports up to 2 GB of DDR memory across its two DIMM slots.

Which audio codec is integrated on the motherboard?

The integrated audio codec is Realtek ALC655.
