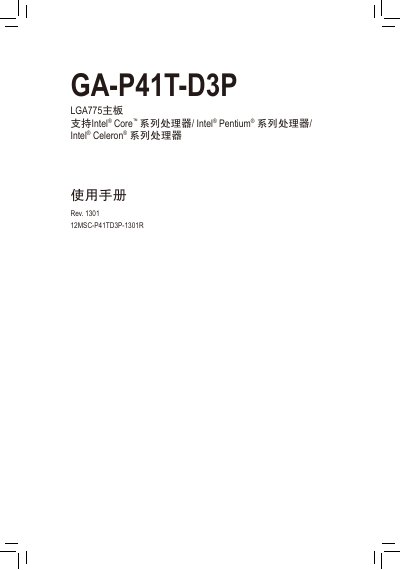

GA-P41T-D3P motherboard user manual, introduces the motherboard's hardware installation and BIOS program setting
This manual covers the complete setup of the GA-P41T-D3P LGA775 motherboard, including safety precautions, CPU and cooler installation, memory installation, and expansion card mounting. Detailed sections explain BIOS configuration, driver installation, and the unique features such as Q‑Flash and EasyTune.
In addition to hardware guidance, the document lists the full technical specifications of the board, describes supported processors, memory types, audio and network interfaces, and provides a troubleshooting appendix for common issues. This manual is written in Chinese.
| CPU socket | LGA775 |
|---|---|
| Chipset (Northbridge) | Intel® G41 |
| Chipset (Southbridge) | Intel® ICH7 |
| Memory slots | 2 DDR3 DIMM slots, up to 4 GB total |
| Supported memory speed | DDR3 1333/1066/800 MHz (OC) |
| Audio codec | Realtek ALC888/889/892, supports 2/4/5.1/7.1 channels |
| Network controller | Realtek RTL8111C/D/E 10/100/1000 Mbit |
| Expansion slots | 1 PCI‑Express x16, 3 PCI‑Express x1, 3 PCI |
| Storage interfaces | 1 IDE (ATA‑100/66/33), 4 SATA 3 Gb/s |
| USB ports | Up to 8 USB 2.0/1.1 ports (4 rear, 4 via headers) |
It uses an LGA775 socket for supported Intel processors.
The board has two DDR3 DIMM slots that together support up to 4 GB of memory.
You can update the BIOS using Q‑Flash for a quick refresh or @BIOS for an online update.
The motherboard supports up to eight USB 2.0/1.1 ports, four on the rear panel and four via internal headers.
