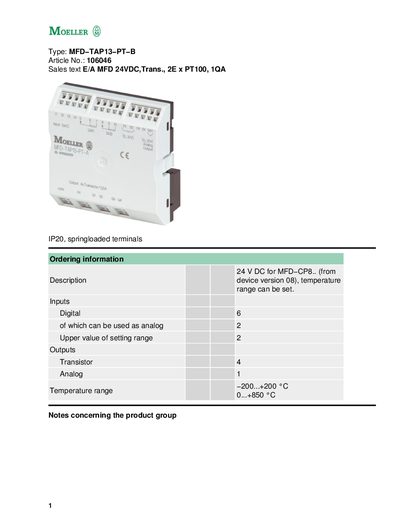

MFD−TAP13−PT−B is a 24V DC powered sensor module with 2 PT100 sensor inputs and 1 digital output, with a temperature range that can be set.
The MFD‑TAP13‑PT‑B is a 24 V DC bus module with digital inputs that can be used as analog inputs, offering temperature measurement and various output options. It is designed for industrial automation applications and includes detailed information on wiring, programming, and environmental limits.
Key features include an operating voltage of 24 V DC, a temperature range of –200 °C to +200 °C, IP20 protection, a weight of 0.14 kg, and compliance with EMC standards such as EN 55011 Class B. The handbook also lists accessories, mechanical specifications, and EMC test results.
| Operating voltage | 24 V DC |
|---|---|
| Temperature measurement range | -200 °C to +200 °C |
| Weight | 0.14 kg |
| Digital input voltage | 24 V DC |
| Operating ambient temperature range | -25 °C to +55 °C |
| Pollution degree | 2 |
| Vibration constant amplitude | 0.15 mm |
| Mechanical shock resistance | 15 g/11 ms |
| EMC class | EN 55011 Class B |
It can measure temperatures from –200 °C to +200 °C.
The module operates at 24 V DC.
The module weighs 0.14 kg.
