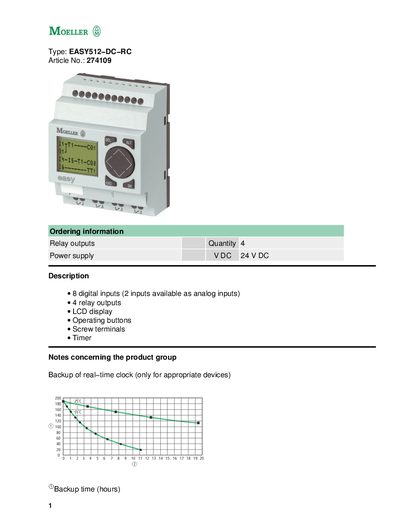

EASY512-DC-RC is a modular automation controller in the Easy512 series, which provides 4 relay outputs, 8 digital inputs (2 inputs can be used as analog inputs), LCD display, operating buttons, screw terminals, timer and other functions.
The EASY512-DC-RC is a compact controller with eight digital inputs (two convertible to analog), four relay outputs, an LCD display and operating buttons. It is intended for industrial automation and can be mounted on a top‑hat rail or fixed with screws.
The manual lists mechanical dimensions (71.5 × 90 × 58 mm), weight (0.2 kg), IP20 protection, operating temperature from –40 °C to +70 °C, and compliance with IEC/EN environmental and EMC standards. Electrical data include a 24 V DC supply, relay output capacity, and detailed input/output specifications.
| Relay outputs | 4 |
|---|---|
| Power supply voltage | 24 V DC |
| Digital inputs | 8 |
| LCD display | Yes |
| Dimensions (W × H × D) | 71.5 × 90 × 58 mm |
The controller requires a 24 V DC power supply.
It provides four relay outputs.
