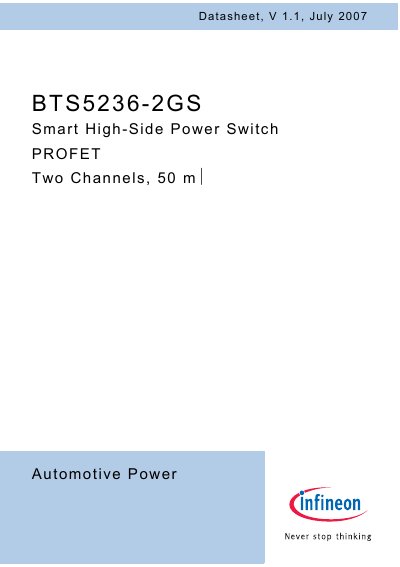

BTS5236-2GS is an automotive power smart high-side power switch with two channels and an output on-state resistance of 50mΩ.
The BTS5236-2GS is a dual‑channel smart high‑side power switch in a PG‑DSO‑14‑32 package. It integrates protective functions such as overload, reverse polarity, over‑voltage, loss‑of‑ground, and ESD protection, and provides diagnostic feedback via IntelliSense pins.
The device uses an N‑channel vertical power MOSFET with a charge pump, offers low standby current, and supports 3.3 V and 5 V logic. It is RoHS‑compliant and suitable for automotive and industrial applications with resistive, inductive, or capacitive loads.
| Operating voltage (Vbb(on)) | 4.5 … 28 V |
|---|---|
| Over‑voltage protection (Vbb(AZ)) | 41 V |
| On‑state resistance (RDS(ON)) | 50 mΩ |
| Nominal load current (single channel active) | 3.2 A |
| Standby current (device with load) | 2.5 µA |
The on‑state resistance is 50 mΩ.
