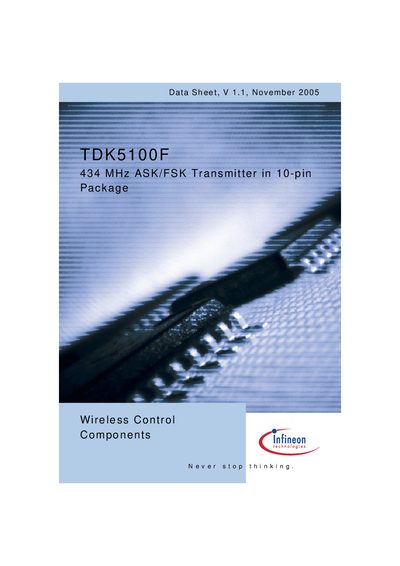

This document describes the features and characteristics of the TDK5100F 434 MHz ASK/FSK transmitter.
The TDK5100F is a single‑chip ASK/FSK transmitter designed for the 433‑435 MHz band. It integrates a PLL synthesizer, a high‑efficiency power amplifier and a divided clock output, requiring only a few external components.
Key features include a supply voltage range of 2.1 V‑4 V, operation from –40 °C to +125 °C, a typical output power of 5 dBm, a crystal oscillator at 13.56 MHz and a clock output (CLKOUT) at 847.5 kHz. Pin definitions and functional block diagrams are provided for easy integration.
| Frequency range | 433‑435 MHz |
|---|---|
| Typical output power | 5 dBm |
| Supply voltage range | 2.1 V‑4 V |
| Operating temperature range | -40 °C to +125 °C |
| Crystal oscillator frequency | 13.56 MHz |
| Clock output frequency (CLKOUT) | 847.5 kHz |
The device operates with a supply voltage between 2.1 V and 4 V.
The transmitter typically delivers about 5 dBm of output power.
The CLKOUT pin outputs a clock signal at 847.5 kHz.
It can operate from –40 °C up to +125 °C.
