BTS 462 T is a high-side switch from Dinghao brand, with overload protection, current limitation, short circuit protection, thermal shutdown, overvoltage protection, fast demagnetization, reverse battery protection, CMOS compatible input, GND and Vbb protection, ESD protection and very low standby current

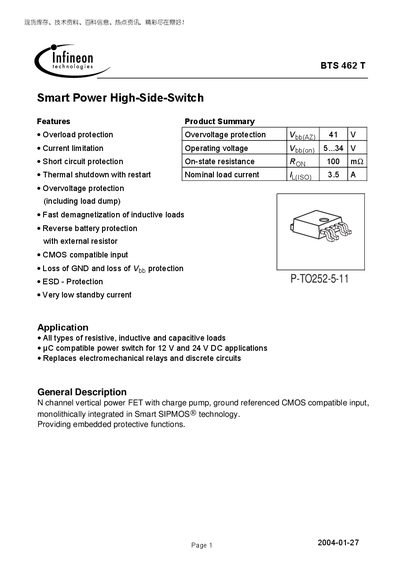

The Infineon BTS462T is a N‑channel vertical power FET with integrated charge‑pump and CMOS‑compatible input, designed for high‑side switching in 12 V and 24 V DC applications. It provides overload, over‑voltage, short‑circuit, reverse‑battery and thermal protection functions, making it a suitable replacement for electromechanical relays.
The document includes a block diagram, pin configuration, maximum ratings, detailed electrical characteristics, protection functions, and package information. It also contains timing diagrams for turn‑on, turn‑off, and over‑temperature behavior, as well as guidelines for external components such as current‑limiting resistors.
