15N60C3 is a high voltage power transistor from Texas Instruments with a maximum voltage rating of 650V and a maximum continuous current of 15A.

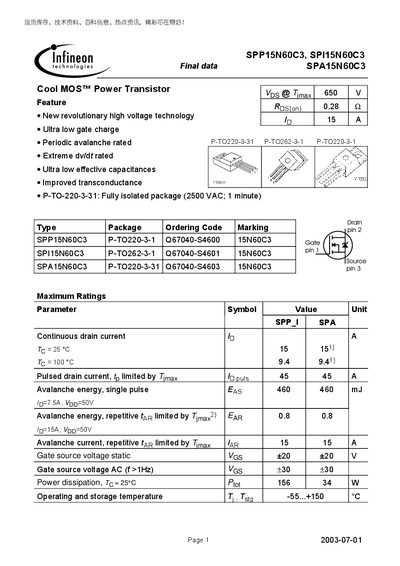

The SPP15N60C3 and SPI15N60C3 are high‑voltage, ultra‑low gate‑charge MOSFETs offered in TO‑220‑3 and TO‑262‑3 packages. They feature ultra‑low effective capacitances, extreme dv/dt rating, and a periodic avalanche rating, making them suitable for demanding power conversion applications.
The document lists maximum ratings, thermal characteristics, detailed electrical parameters such as drain‑source breakdown voltage, on‑state resistance, gate charge, and capacitances, as well as safe operating area curves and mounting instructions for both the FullPAK and leaded versions.
| Continuous drain current (Id) at 25 °C | 15 A |
|---|---|
| Output capacitance (Coss) | 540 pF |
| Power dissipation at 25 °C (Pd) | 156 W |
The device can conduct a continuous drain current of 15 A at 25 °C.
