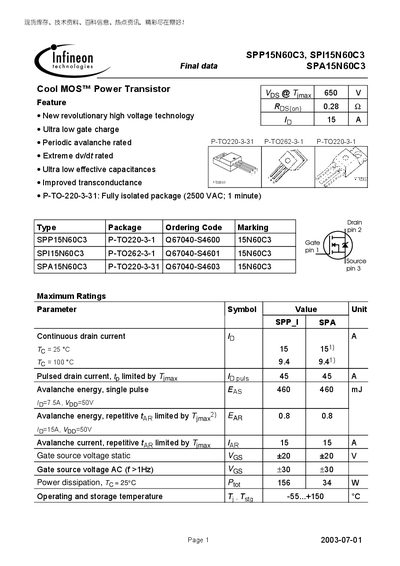

This is a PDF document about SPP15N60C3, SPI15N60C3 SPA15N60C3. It introduces the features and characteristics of this product, including maximum voltage, on-resistance, rated current, pulsed current, surge energy, surge current, gate source voltage, power consumption, operating temperature, etc.
The Cool MOS™ Power Transistor series from Infineon includes the SPP15N60C3, SPI15N60C3 and SPA15N60C3 devices. They feature ultra‑low gate charge, extreme dv/dt capability, and very low effective capacitances, making them suitable for high‑voltage, high‑speed switching applications.
The document provides maximum ratings, thermal characteristics, electrical parameters, transient thermal impedance, and safe operating area curves for each package variant (TO‑220‑3, TO‑262‑3, Full‑PAK). It also references mounting instructions and application notes for proper integration.
