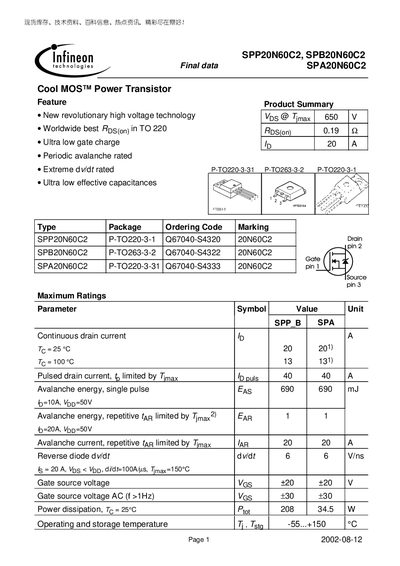

This document describes the features and characteristics of the SPP20N60C2, SPB20N60C2, and SPA20N60C2 Cool MOS™ power transistors produced by Dinghao, including new revolutionary high voltage technology, worldwide best RDS(on), ultra-low gate charge, periodic avalanche rated, extreme dv/dt rated, and ultra-low effective capacitances.
This datasheet provides the electrical, thermal and switching characteristics of Infineon's Cool MOS™ power transistors SPP20N60C2, SPB20N60C2 and SPA20N60C2. It includes maximum ratings, package information, and typical performance curves for use in high‑voltage applications.
Key sections cover continuous and pulsed drain current limits, breakdown voltages, gate charge, on‑state resistance, transient thermal impedance, and safe operating area diagrams. The document also contains mounting instructions and legal notices from Infineon Technologies AG.
| Pulsed drain current (Id, pulsed) | 40 A |
|---|---|
| Maximum power dissipation (Ptot) at 25 °C | 208 W |
| Operating temperature range | -55 °C to +150 °C |
It can operate from –55 °C up to +150 °C.
