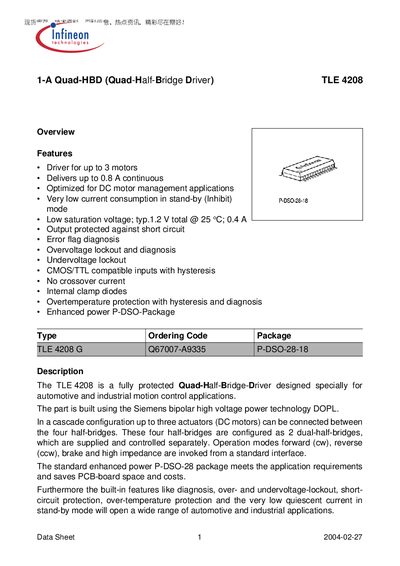

The TLE 4208 is a fully protected Quad-Half-Bridge-Driver designed specially for automotive and industrial motion control applications. It has the capability to drive up to 3 motors with a continuous output current of up to 0.8A. Additionally, it features low quiescent current consumption, low saturation voltage, output short circuit protection, overvoltage lockout and diagnosis, undervoltage lockout, CMOS/TTL compatible inputs, and more.
The TLE4208 is a Quad‑Half‑Bridge Driver designed for automotive and industrial motion‑control applications. It can drive up to three DC motors and provides forward, reverse, brake and high‑impedance operation via a standard interface.
Key features include low quiescent current in standby, short‑circuit protection, over‑temperature and over/under‑voltage lockout, error‑flag diagnosis, CMOS/TTL compatible inputs, and an enhanced P‑DSO‑28‑18 package that saves PCB space.
| Continuous output current | 0.8 A |
|---|---|
| Typical saturation voltage | 1.2 V @ 25 °C (0.4 A) |
| Quiescent current (stand‑by) | 100 µA |
| Supply voltage range (operating) | 4.5 V – 18 V |
| Maximum supply voltage | 45 V |
It can drive up to three DC motors.
The device delivers up to 0.8 A continuous output current.
