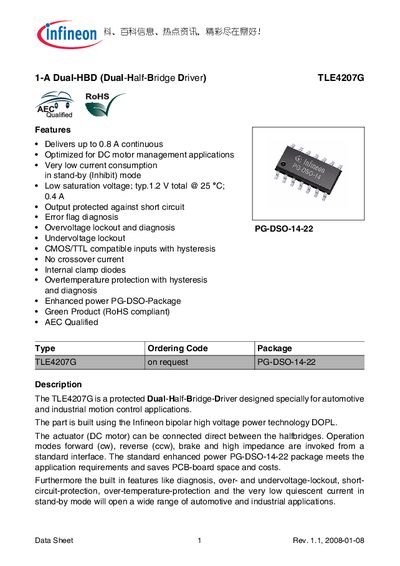

The document describes the features and characteristics of the TLE4207G dual half-bridge driver, which is designed for automotive and industrial motion control applications. Its features include high voltage power technology, low quiescent current, overtemperature protection, fault detection, etc.
The TLE4207G is a protected dual‑half‑bridge driver designed for automotive and industrial motion‑control applications. It integrates features such as short‑circuit protection, over‑ and undervoltage lockout, and over‑temperature protection, making it suitable for a wide range of DC‑motor driven systems.
Key specifications include a continuous output current of up to 0.8 A, a supply voltage range of 8 V to 18 V, low quiescent current in standby, and detailed pin configurations with integrated clamp diodes. The datasheet also lists absolute maximum ratings, operating ranges, and typical saturation voltages for both source and sink outputs.
| Continuous output current | 0.8 A |
|---|---|
| Supply voltage range | 8 V – 18 V |
| Quiescent current (INH=LOW) | 20 µA typical (max 50 µA) |
| Source upper saturation voltage (typ.) | 0.85 V – 1.15 V at 25 °C |
The device can deliver up to 0.8 A continuous.
It operates with a supply voltage between 8 V and 18 V.
Yes, the outputs are short‑circuit protected with integrated clamp diodes.
Typical quiescent current is 20 µA (maximum 50 µA) at 13.2 V and 25 °C.
